Category Rated Safes
As crime increases Paysolutions answers with our range of category 3 and 4 rated devices. Built and designed for retail and high volume, high risk environments with holding capacities of both 5000 and 10 000 notes .The Cat rated series epitomizes the phrase “Africa tough” bringing industry leading security features and design to new era technology.

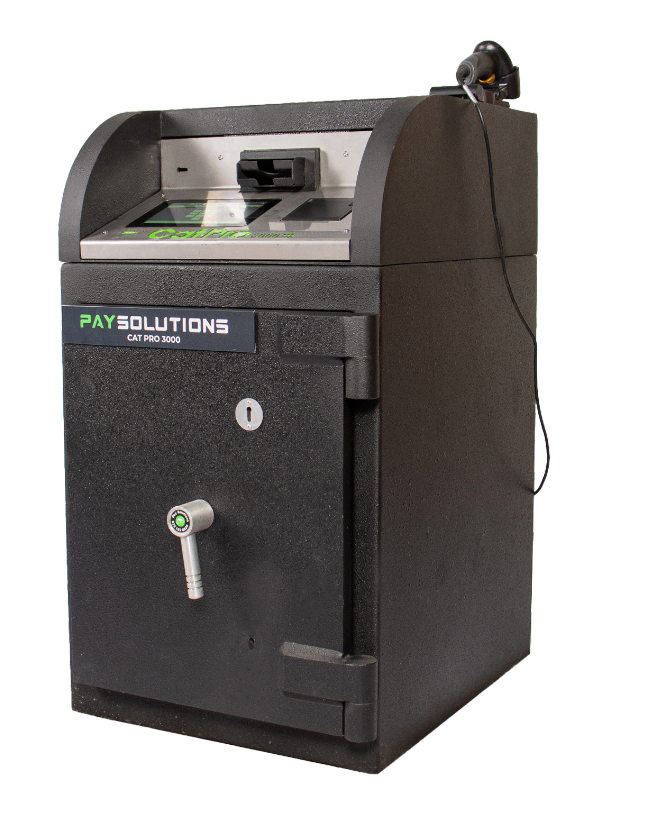

CatPro 3000
The catpro3000 is a uniquely designed, medium speed device focussed on undercounter placement. Our design team has incorporated a unique over hang concrete category head unit, restricting access to the note drop hole point. The device allows for a 3000 or 5000 note capacity bag , meeting both a small to medium volume cash requirement.
PRODUCT DETAILS AND SIZE
| Approved | Cat2 SABS approved |
|---|---|
| Speed | Up to 50 notes per/min |
| Capacity | Max limit of between 5000 notes |
| Weight & Dimensions (in mm) | 350kgs | 858H x 490W x 565D |
| Interface | 7-inch Touch screen |
| Note Counter | Mei Bulk note feeder |
| Software | Android software |
| Locking optional | Sergeant and Greenleaf electronic lock |
| Locking Mechanism | 7 lever key retaining lock |
SmartPro 5000
The smartpro 5000 is your ideal high risk retail device ,offering a compact design with bold security features. The Smartpro 5000 may be built in a Category 3 or 4 security rating , depending on our customers environment and risk profile. The Smartpro has a holding capacity of 5000 notes that can fitted with a heat seal or reusable bag format.
PRODUCT DETAILS AND SIZE
| Approved: | Cat3 SABS approved |
| Speed : | Up to 800 notes per minute |
| Note Counter: | Glory Gfs 100 note counter or Lince 700 |
| Capacity: | Max limit of between 5000 notes |
| Weight: | 480kgs |
| Dimensions: | 843Hx 745Dx487W |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Touch screen or stand- alone interface |
| Interface:Optional | Mobipos wireless handhend terminal |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Locking optional | Sergeant and Greenleaf electronic lock |
SmartPro 5000 TTW
The Smartpro through the wall is modelled off our existing Smartpro5000 product , although manufactured to cater for a specific market, being the forecourt fuel retail sector. The device is designed to allow for cash drops to be made within the safety of your premises, with cash collections only able to take place from the exterior, eliminating the potential in store risk that cash in transit companies and crewman might impose.
PRODUCT DETAILS AND SIZE
| Approved: | Cat3 SABS approved |
| Speed : | Up to 800 notes per minute |
| Note Counter: | Glory Gfs 100 note counter or Lince 700 |
| Capacity: | Max limit of between 5000 notes |
| Weight: | 480kgs |
| Dimensions: | 843Hx 745Dx487W |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Touch screen or stand- alone interface |
| Interface:Optional | Mobipos wireless handhend terminal |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Locking optional | Sergeant and Greenleaf electronic lock |

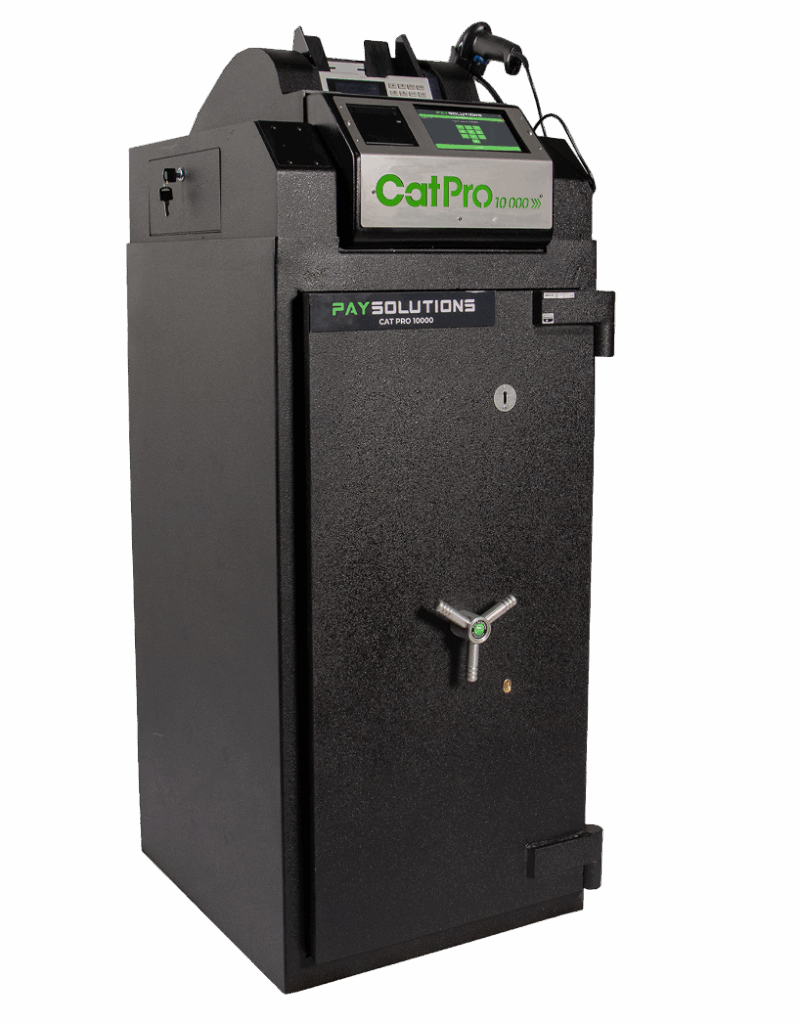

CatPro 10 000
The Catpro10 000 is Known as the Goliath of the Paysolutions device range. Built with a 70mm categorised structure and holding capacity of 10 000 – 15 000 notes , the Catpro brings the no nonsense attitude to bulk cash deposits ,able to secure your cash safely with peace of mind.
PRODUCT DETAILS AND SIZE
| Approved: | Cat3 SABS approved |
| Speed : | Up to 800 notes per minute |
| Note Counter: | Glory Gfs 100 note counter or Lince 700 |
| Capacity: | Up to 10k holding capacity |
| Weight: | 670kgs |
| Dimensions: | 1200mmH x 560mmW x 700D |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Touch screen or stand- alone interface |
| Interface:Optional | Mobipos wireless handhend terminal |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Locking optional | Sergeant and Greenleaf electronic lock |
Plate Safe Devices
Our Cashpro range of products were built and developed with a industry first Android wireless technology, allowing point of sales and value added services devices to interface with our safes. Designed with a robust 20mm steel structure and sleek design, the cashpro series is the perfect safe range for confined ,space sensitive environments. Manufactured in a 3000, 5000 and 10 000 note capacity, our cashpro range accommodates all your needs.
CashPro 10 000
The Cashpro10 000 was built and designed to focus on a retail market that requires bulk volume acceptance in a confined space . The Cp10 000 has a 10 000 note holding capacity and is fitted with a GFS 100 series High speed note counter. The Cp10 000 has a 20mm solid steel design giving it robust security features with a sleek and slim footprint.
PRODUCT DETAILS AND SIZE
| Approved: | 20mm Mild steel structure |
| Speed : | Up to 800 notes per minute |
| Note Counter: | Gfs100 or lince high speed note counters |
| Capacity: | Max limit of between 10 000 notes |
| Weight: | 420kgs |
| Dimensions: | 1320Hx 615Dx390W |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Wireless android terminal -mobipos |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Mounting holes | 4 x mounting points ( chemical or Concrete Stud) |
| Bag storage mechanism | 1 x reusable bag |
CashPro 5000
The Cashpro 5000 has combined the size features of our Cp3000 with the bulk acceptance and note count of our Cashpro10 000, offering you a small footprint with bulk acceptance capabilities. The Cp5000 is fitted with a GFS 100 series high speed note counter and holding capacity of 5000 notes .If high speed bulk deposits with undercounter storage is what you are after then the Cp5000 has just that.
PRODUCT DETAILS AND SIZE
| Approved: | 20mm Mild steel structure |
| Speed : | Up to 800 notes per minute |
| Note Counter: | Glory Gfs 100 note counter or Lince 700 |
| Capacity: | Max limit of between 5000 notes |
| Weight: | 250kgs |
| Dimensions: | 765Hx 615Dx390W |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Wireless android terminal -mobipos |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Mounting holes | 4 x mounting points ( chemical or Concrete Stud) |
| Bag storage mechanism | 1x reusable bag |
CashPro 3000 - Multi Note Feeder
The Cashpro 3000 is your perfect retail solution, offering a medium capacity holding in a small compact device. The Cp3000 is designed to house a single and multi-note Mei validator, accommodating single feed or small batched cash drops. This intelligent automated business safe requires less space than its forerunner and will fit into stores with limited floor space, without reducing any of the security and cash management features.
PRODUCT DETAILS AND SIZE
| Approved: | 16mm Mild steel structure |
| Speed : | Up to 50 notes per minute |
| Note Counter: | Mei Single or multi note feeder |
| Capacity: | Max limit of between 3000 notes |
| Weight: | 160kgs |
| Dimensions: | 765Hx 500Dx245W |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Wireless android terminal -mobipos |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Mounting holes | 4 x mounting points ( chemical or Concrete Stud) |
| Bag storage mechanism | 1 x reusable bag |
CashPro 3000 - Single Note Feeder
The Cash Pro 3000 has been designed for under counter cash operations from R10 000 up to R250 000 and uses a single or multi note feed device to validate the deposit. It has the same footprint as the 2400 and the 1200 models. This small footprint makes it convenient to fit under counter at or near the cash operations. The Safe is anchored to the ground for security. The Cash Pro 3000 has a capacity of approximately 3000 notes and stores the notes in a Reusable Bag for transport. The safe is secured by a 16 mm steel enclosure with a 16 mm steel door. The device detects mains power failure and has an internal battery backup to allow for orderly shut downs. The Cash Pro door locks are secured by two manual key locks and can be configured to include a electronic lock for third party authentication, with monitoring and reporting on safe door opening during cash removes. The Cash Pro range has a web- based platform in addition to local data storage capabilities to provide the customer with real time reporting directly on the safe or from remote via the customer web portal. This includes a record of all historical and real time transactions, including, but not limited to, cash removed and cash dropped for up to 5 years. The device can also be integrated into various other cash management systems or POS systems to allow for a turnkey or end-to- end cash management solution.
PRODUCT DETAILS AND SIZE
| Approved: | 16mm Mild steel structure |
| Speed : | Up to 50 notes per minute |
| Note Counter: | Mei Single or multi note feeder |
| Capacity: | Max limit of between 3000 notes |
| Weight: | 160kgs |
| Dimensions: | 765Hx 500Dx245W |
| Software: | Android wireless technology; Remote access and technical assistance |
| Interface: | Wireless android terminal -mobipos |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
| Mounting holes | 4 x mounting points ( chemical or Concrete Stud) |
| Bag storage mechanism | 1 x reusable bag |
Note Counters
Our note counters are manufactured to be modern, reliable cash handling extensions for your business. For high volume money counting and batching that is fast, secure and reliable. Look no further than the PaySolutions note counter range. Remove the risk of dealing with counterfeit notes with our highly secure machines that come with a guarantee.
Lince 700 - Bank Note Sorter
Modern, reliable cash handling, the ultimate banknote sorter. Mature sensor technology, banknote serial number read. Highest reliability and extremely accurate. With two CiS image sensors, double-sided high precision multi-spectral scanning of banknote information. Banknote serial number reading, save serial number and image in real time. Comprehensive and applicable sorting function. The sorting mode can be set as required. 3.5" Coloured TFT LCD display and easy operation. Improved feeding mechanism with easy jam removal, non-stop counting with reject stacker.
PRODUCT DETAILS AND SIZE
| Counting Speed | 800/900/1000 notes/min |
| Hopper Capacity | Approx. 500 notes |
| Stacker Capacity | 200 notes |
| Reject Stacker Capacity | Approx. 50 notes |
| Display | 35" Coloured TFT LCD |
| Communication Port | 2xRS232, 1x USB, 1x External display |
| Software Upgrade WxDxH | 300x330x370mm |
| Weight | About 15kg |
| Power Source | AC 100-240V +- 10% 50/60HZ |
| Power Consumption | 0-35°C |
| Operating Temperature | 20-90% (no condensation) |
SML 8672 Note Counter
SML8672 Note counter with UV MG and IR counterfeit detection, offers high volume money counting and batching that is fast and accurate. Top note loader with a one year guarantee. Specify a denomination and the machine will count in Rand value at a speed of 1600 notes per minute.
PRODUCT DETAILS AND SIZE
| Dimensions: | 262mm X 275mm X 260mm/290mm (Max) |
| Net Weight: | 5.0kgs |
| Size of countable note: | 55mm X 110mm ~ 90mm X 190mm Counting speed: 1600, 1300, 1000 pcs/min. |
| Feed system: | Roller friction system |
| Hopper capacity: | 600 sheets (Max) |
| Stacker capacity: | 200 sheets |
| Counting number display: | 7 Digits LCD |
| Batch size display: | 3 Digits LCD |
| Power source: | AC100~240V 50/60Hz |
| Power consumption: | 1.5A (100~120V), 0.6A (220~240V), 60W |
Coin Counters
Our coin counters are manufactured to be reliable and modern solutions for cash processing. With proven sensor technology we are able to guarantee the highest reliability with extreme accuracy. Look no further than the PaySolutions coin counter range. Remove the risk of dealing with counterfeit coins as our strong performing machines count and sort while rejecting all counterfeit coins.
Coin Automated Drop Safe
The device has 2 re-usable bags or sealable stop loss bags, each bag can contain 6kg's of coins of a single currency. You can easyily add new coins on the coin device. The machine operates at a speed of up to 800 coins per minute. The interface offers web based access to view coins in safes. Branding of safes are as per bank or customer requirements.
PRODUCT DETAILS AND SIZE
| Dimensions | 900x640x450mm |
| Weight | 90kg |
| Power Supply | 230V 50Hz or 115V 60Hz |
| Power consumption | 60W |
| Ambient temperature | 10-40 Celcius |
| Humidity | 30-75% |
| Volume coin hopper | approx. 500-600 coins (with a coin diameter of 21,5mm and coin thickness of 1,7mm) |
| Counting Speed | upto 800 coins |
| Display | 4.3 inch TFT colour screen |
| Communication port | 2Xrs232 , 1x USB, 1X External display |
| Upgrade | USB Disk |
Lince Coin Sorter Series
Ultimate Coin Sorters for Reliable and Modern Cash Processing. Proven Sensor technology. Highest reliability. Extreme accuracy. Explore true cash handling with the latest solution designed to satisfy the market’s need for reliable and modern cash processing. It is a strong performer in sorting and counting, as well as in rejecting foreign and damaged coins. Through the unique sensor technology the solution offers outstanding accuracy, combined with reliable functions. Maximise the efficiency at the same time as you increase the accuracy, enabling you to focus on more profitable tasks.
PRODUCT DETAILS AND SIZE
| Technical Specification | LINCE-30C | LINCE-70C | LINCE-90C | LINCE-91C |
|---|---|---|---|---|
| Weight | 14 kg | 22.5 kg | 24.5 kg | 25 kg |
| Dimensions (W x D x H) | 405x 276 x 342mm | 540 x 308 x 430mm | 632 x 308 x 430 mm | 662 x 308 x 430 mm |
| Power supply | 100-240 V AC, 60/50Hz | 100-240 V AC, 60/50Hz | 100-240 V AC, 60/50Hz | 100-240 V AC, 60/50Hz |
| Power consumption | Working mode: 60W Standby: 24W | Work ing mode: 60W Standby: 24W | Working mode: 60W Standby: 24W | Working mode: 60W Standby: 24W |
| Counting speed | Up to 600 coins/minute | Up to 600 coins/minute | Up to 600 coins/minute | Up to 600 coins/minute |
International Product Range
SlimPro 5000
The slimpro5000 is designed and developed for international specifications and requirements, focussed on low risk environments where retail outlets have the necessary security features to deter potential attackers. The Slimpro is modelled on our smartpro5000 which includes high speed drop functionality and a bag capacity of up to 5000 notes. The slimpro is a 40mm (2.5 inch) concrete categorised carcass with a 6mm base, providing a Euro Grade 4 EN1143-2 equivalent, meeting the minimum insurance risk requirement.
PRODUCT DETAILS AND SIZE
| Approved | Cat3 SABS approved |
|---|---|
| Speed | Up to 800 notes per/min |
| Capacity | Max limit of between 5000 notes |
| Weight & Dimensions (in mm) | 250kgs | 915H x 497W x 565D |
| Interface | Touch screen or stand- alone interface |
| Note Counter | Glory Gfs 100 note counter or Lince 700 |
| Software | Android wireless technology; Remote access and technical assistance. |
| Interface | Touch screen or stand- alone interface |
| Interface | Mobipos wireless handheld terminal |
| Locking optional | Sergeant and Greenleaf electronic lock |
| Locking Mechanism | 2 x keys. Retaining 7 lever locks |
